Description

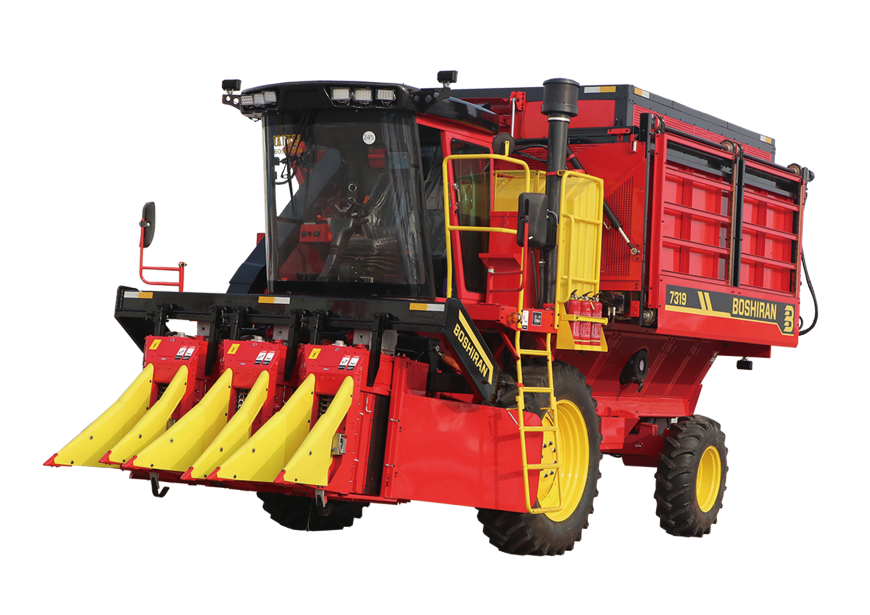

3-Row Basket-Type Cotton Harvester, refined through years of technical expertise, has evolved into a highly reliable and operationally stable solution for cotton harvesting. This machine integrates three core functions—simultaneous harvesting, conveying, and on-board storage of cotton—into a single streamlined process. Designed for ease of operation and minimal maintenance, it delivers superior picking accuracy and is optimized for small to medium-sized cotton fields, offering farmers a cost-effective and efficient harvesting solution.
Product Advantage
Boshiran’s 3-Row Cotton Harvester integrates cutting-edge engineering to deliver unmatched efficiency:
28 m3 Dual-Layer High-Capacity Cotton Chamber. Engineered for extended operation, capable of holding up to 2 tons of cotton with minimized unloading frequency.
260-Horsepower, Turbocharged Engine:
Ensures high-performance output and reliability in demanding field conditions.
High-Speed Mid-Sized Picking Head:
Optimizes harvesting efficiency through rapid, precise cotton collection.
Vertical Airflow System:
Generates powerful, focused airflow for consistent cotton delivery and reduced debris retention.
Product Features
Electronically controlled automatic transmission for easy and accurate gear shifting with one button.
Fully electronic control for operation, eliminating gear cables, CVT cables, and throttle cables.
Hydraulic motors are used for transmitting power to the picking head, fan, and propulsion system, ensuring more reliable performance,smoother operation, and simpler control.
The luxurious cab with ample space and a wide viewing angle provides a clean and comfortable environment to reduce operator fatigue.
Heated water circuit design in the engine compartment enhances resistance to icing.
The rear axle is welded as a whole, and the low-pressure rear wheels are increased in size and width, providing more stable cotton harvesting and better operation quality.
Product Video
Product Parameters
| Serial No. | Item | Unit | Parameters / Specifications |
| 1 | Model | / | 4MZ-3B Self-Propelled Cotton Harvester |
| 2 | Suitable Row Spacing | cm | 76 (66+10/68+8) |
| 3 | Number of Picking Rows | Row | 3 |
| 4 | Vehicle Weight | t | 13.2 |
| 5 | Working Dimensions | m | 8.1×3.9×4.8 |
| 6 | Cotton Bin Volume | m3 | 28 |
| 7 | Unloading Method | / | Side Tilt Lift, Chain Rake Unloading |
| 8 | Travel Control | / | Hydrostatic/3-Speed Electro-Hydraulic Control |
| 9 | Fuel Tank Capacity | L | 400 |
| 10 | Cleaning Solution Tank | L | 600 |
| 11 | Hydraulic Oil Tank | L | 220 |
| 12 | Fan Speed | rpm | 3900 |
| 13 | Engine Power | kw（hp） | 260 |
| 14 | Number of Picking Heads | Unit | 3 |
| 15 | Number of Drums | Unit | 3×2 (6 total) |
| 16 | Spindle Assembly Quantity | Unit | 3×12 + 3×16 (84 total) |
| 17 | Total Spindle Quantity | Unit | 84×18 (1,512 total) |
| 18 | Picking Head Rated Input Speed | rpm | 1500 |
| 19 | 1st Gear / 2nd Gear Speed | km/h | 0-6.2 / 0-7.6 |
| 20 | Road Travel Mode Speed | km/h | 0-23 |
